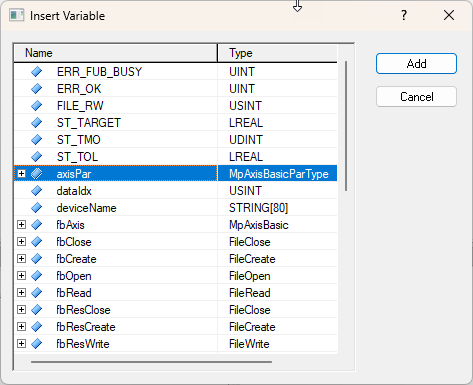

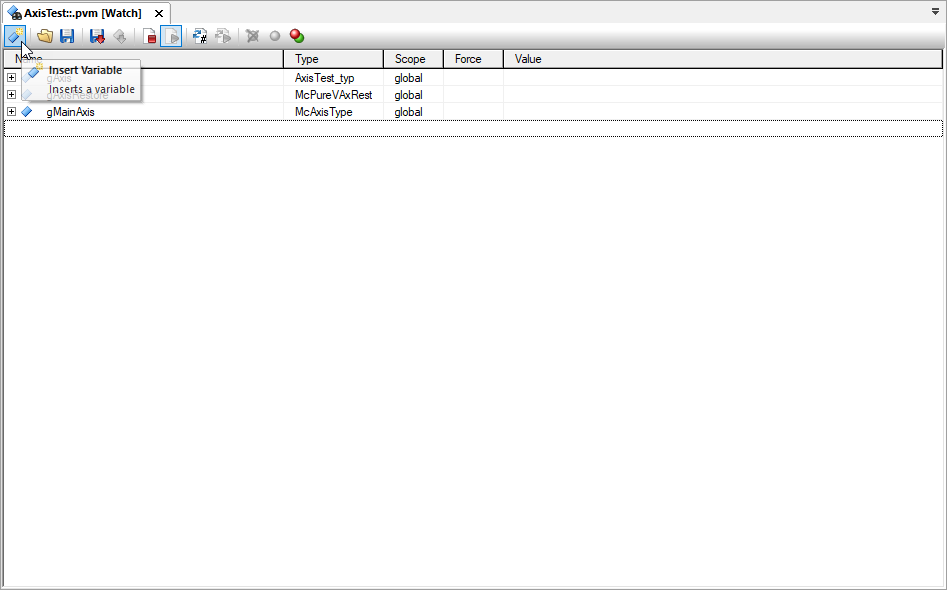

Save & analyze watch window snapshots (.pvm)

#!/usr/bin/env python3
"""Convert B&R Automation Studio watch-window PVM files to JSON.

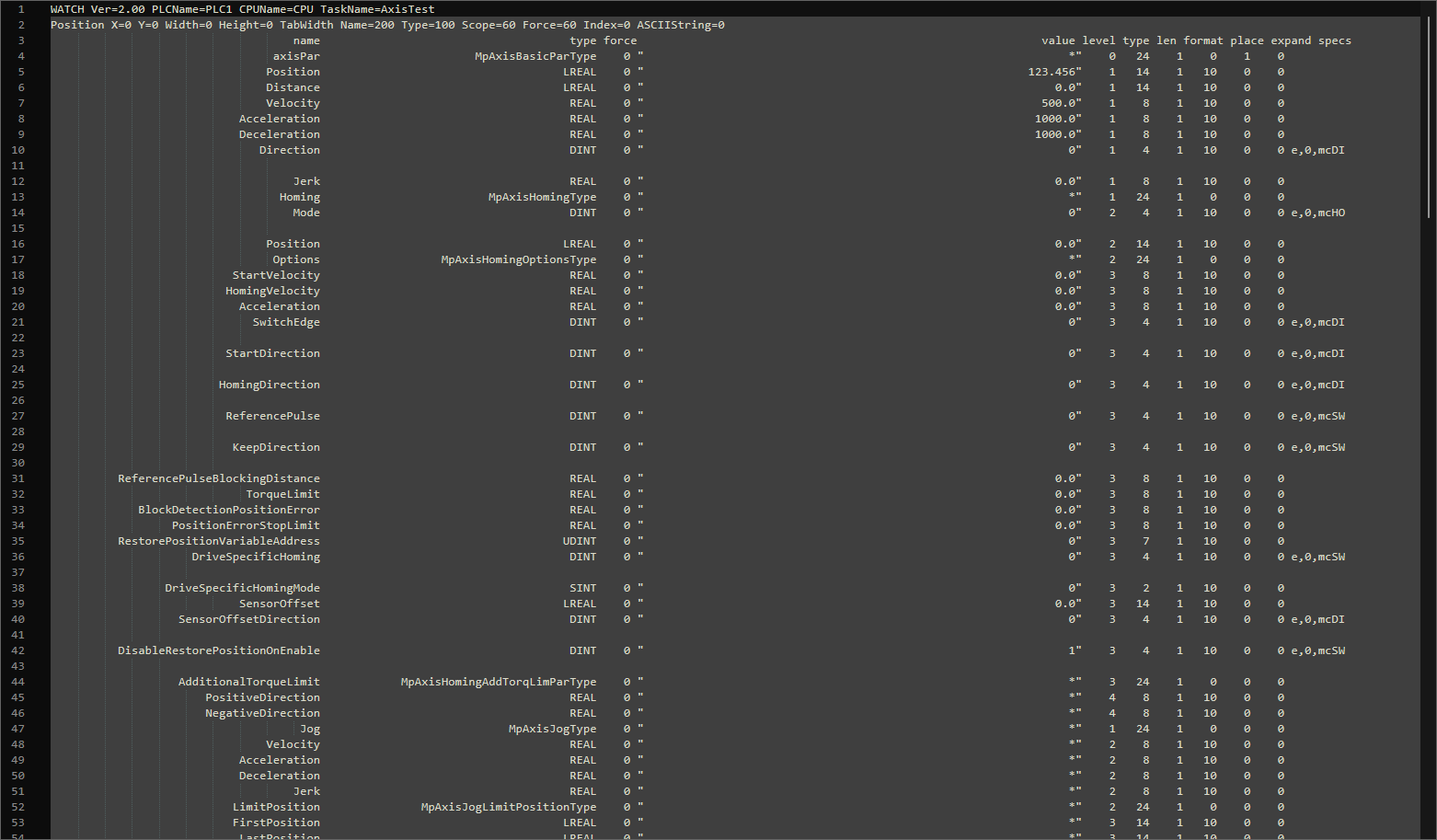

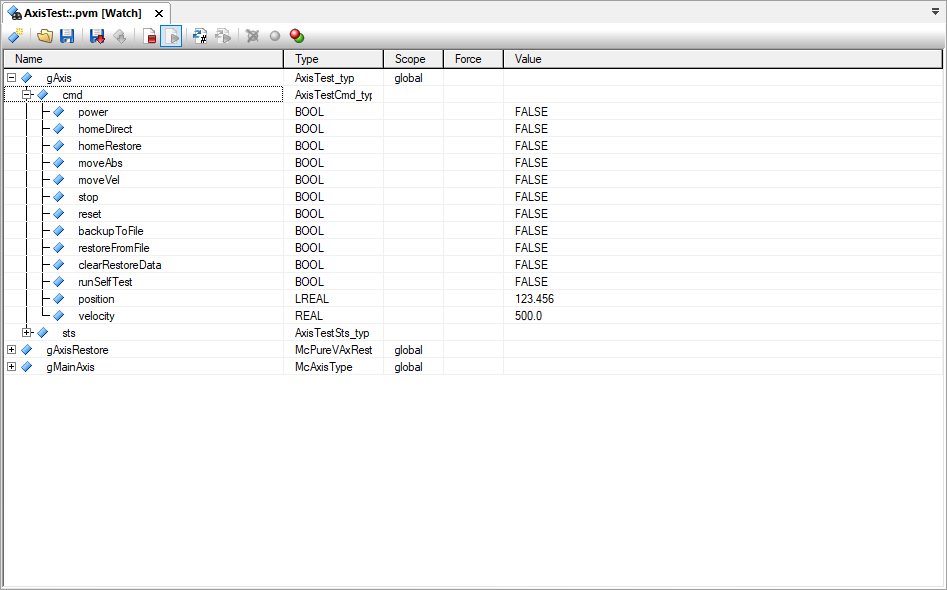

A PVM file is a whitespace-separated dump of a watch window:
  - Line 1: WATCH header (Ver, PLCName, CPUName, TaskName, ...)
  - Line 2: window Position/layout info (ignored)
  - Line 3: column header (name, type, force, value, level, ...)
  - Remaining lines: one variable per line. A value of "*" on a row whose
    `level` is followed by deeper rows means the row is a structure (or
    array) and its members follow. A "*" on a leaf means the value was not
    captured/expanded in the watch window -> emitted as null.

Array members appear as `name[0]`, `name[1]`, ... nested under a row whose
type is e.g. `DINT[0..99]`; these are collapsed into JSON arrays.

Usage:
    python pvm_to_json.py                  # convert every *.pvm in cwd
    python pvm_to_json.py file1.pvm ...    # convert specific files
    python pvm_to_json.py --full ...       # include type/force metadata per node
    python pvm_to_json.py -o out.json f.pvm  # explicit output (single input only)
"""

import argparse
import json
import re
import sys
from pathlib import Path

# name  type  force  "value"  level typecode len format place expand [specs]
ROW_RE = re.compile(
    r'^\s*(?P<name>\S+)'
    r'\s+(?P<type>\S+)'
    r'\s+(?P<force>\d+)'
    r'\s+"(?P<value>.*)"'
    r'\s+(?P<level>\d+)'
    r'\s+(?P<typecode>\d+)'
    r'\s+(?P<len>\d+)'
    r'\s+(?P<format>\d+)'
    r'\s+(?P<place>\d+)'
    r'\s+(?P<expand>\d+)'
    r'\s*(?P<specs>\S*)\s*$'
)

ARRAY_ELEM_RE = re.compile(r'^(?P<base>.+)\[(?P<index>\d+)\]$')

NUM_RE = re.compile(r'^-?\d+$')
FLOAT_RE = re.compile(r'^-?\d*\.\d+([eE][+-]?\d+)?$|^-?\d+[eE][+-]?\d+$')


def convert_value(raw):
    """Convert the quoted value field to a native JSON value."""
    v = raw.strip()
    if v == '*':
        return None  # not captured / structure placeholder
    if v.startswith("'") and v.endswith("'"):
        return v[1:-1]
    if v == 'TRUE':
        return True
    if v == 'FALSE':
        return False
    if NUM_RE.match(v):
        return int(v)
    if FLOAT_RE.match(v):
        return float(v)
    return v


def parse_watch_header(line):
    """Parse `WATCH Ver=2.00 PLCName=PLC1 ...` into a dict."""
    meta = {}
    for key, val in re.findall(r'(\w+)=(\S+)', line):
        meta[key] = val
    return meta


def parse_rows(lines):
    """Yield parsed row dicts, skipping headers and blank wrap lines."""
    for lineno, line in enumerate(lines, 1):
        if lineno <= 3 or not line.strip():
            continue
        m = ROW_RE.match(line)
        if not m:
            raise ValueError(f'line {lineno}: unrecognized row: {line!r}')
        yield {
            'name': m['name'],
            'type': m['type'],
            'force': int(m['force']),
            'value': convert_value(m['value']),
            'level': int(m['level']),
        }


def build_tree(rows, full=False):
    """Build a nested dict from the flat row list using the level column.

    Each node starts as a dict with bookkeeping keys; finalize() collapses
    leaves to plain values and groups `name[i]` children into arrays.
    """
    root = {'children': [], 'name': '<root>'}
    stack = [root]  # stack[i] is the open node at level i-1

    for row in rows:
        level = row['level']
        # pop back to the parent of this level
        if level + 1 > len(stack):
            raise ValueError(
                f"row {row['name']!r}: level {level} jumps past current depth "
                f'{len(stack) - 1}'
            )
        del stack[level + 1:]
        node = {**row, 'children': []}
        stack[level]['children'].append(node)
        stack.append(node)

    return finalize(root, full)['value'] if root['children'] else {}


def finalize(node, full):
    """Recursively collapse a node to {'name': ..., 'value': json-ready}."""
    children = node.get('children', [])
    if not children:
        value = node['value']
        if full:
            value = {'type': node['type'], 'value': node['value']}
            if node['force']:
                value['force'] = node['force']
        return {'name': node['name'], 'value': value}

    done = [finalize(c, full) for c in children]

    # array? all children named like parent[index]
    base = node.get('name')
    indices = []
    for c, raw in zip(done, children):
        m = ARRAY_ELEM_RE.match(raw['name'])
        if m and (base in ('<root>',) or m['base'] == base):
            indices.append(int(m['index']))
        else:
            indices = None
            break
    if indices is not None and base != '<root>':
        arr = [None] * (max(indices) + 1)
        for idx, c in zip(indices, done):
            arr[idx] = c['value']
        value = arr
    else:
        value = {}
        for c in done:
            name = c['name']
            if name in value:
                # duplicate sibling name: keep both by suffixing
                n = 2
                while f'{name}~{n}' in value:
                    n += 1
                print(f'warning: duplicate member {name!r}, stored as '
                      f'{name}~{n}', file=sys.stderr)
                name = f'{name}~{n}'
            value[name] = c['value']

    if full and node.get('type'):
        value = {'type': node['type'], 'value': value}
    return {'name': node.get('name', '<root>'), 'value': value}


def convert_file(path, full=False):
    lines = Path(path).read_text(encoding='utf-8', errors='replace').splitlines()
    if not lines or not lines[0].startswith('WATCH'):
        raise ValueError(f'{path}: does not look like a PVM file '
                         f'(missing WATCH header)')
    meta = parse_watch_header(lines[0])
    rows = list(parse_rows(lines))
    return {

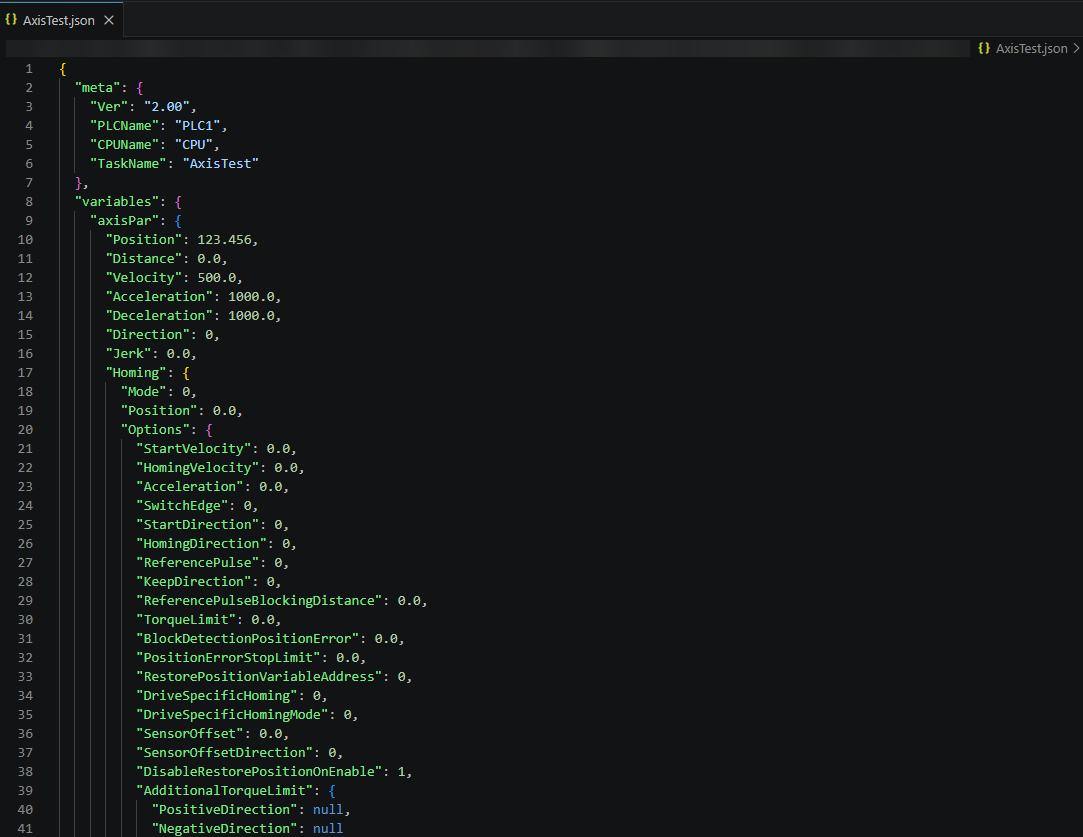

        'meta': meta,
        'variables': build_tree(rows, full=full),
    }


def main():
    ap = argparse.ArgumentParser(
        description='Convert B&R watch-window PVM files to JSON.')
    ap.add_argument('files', nargs='*',
                    help='PVM files to convert (default: all *.pvm in cwd)')
    ap.add_argument('--full', action='store_true',
                    help='include type (and force, when set) metadata per variable')
    ap.add_argument('-o', '--output',
                    help='output file (only valid with a single input; '
                         'default: <input>.json next to each input)')
    args = ap.parse_args()

    files = [Path(f) for f in args.files]
    if not files:
        files = sorted(Path('.').glob('*.[pP][vV][mM]'))
        if not files:
            ap.error('no PVM files given and none found in current directory')
    if args.output and len(files) > 1:
        ap.error('-o/--output requires exactly one input file')

    for path in files:
        result = convert_file(path, full=args.full)
        out = Path(args.output) if args.output else path.with_suffix('.json')
        out.write_text(json.dumps(result, indent=2) + '\n', encoding='utf-8')
        print(f'{path} -> {out}')


if __name__ == '__main__':
    main()

#!/usr/bin/env python3

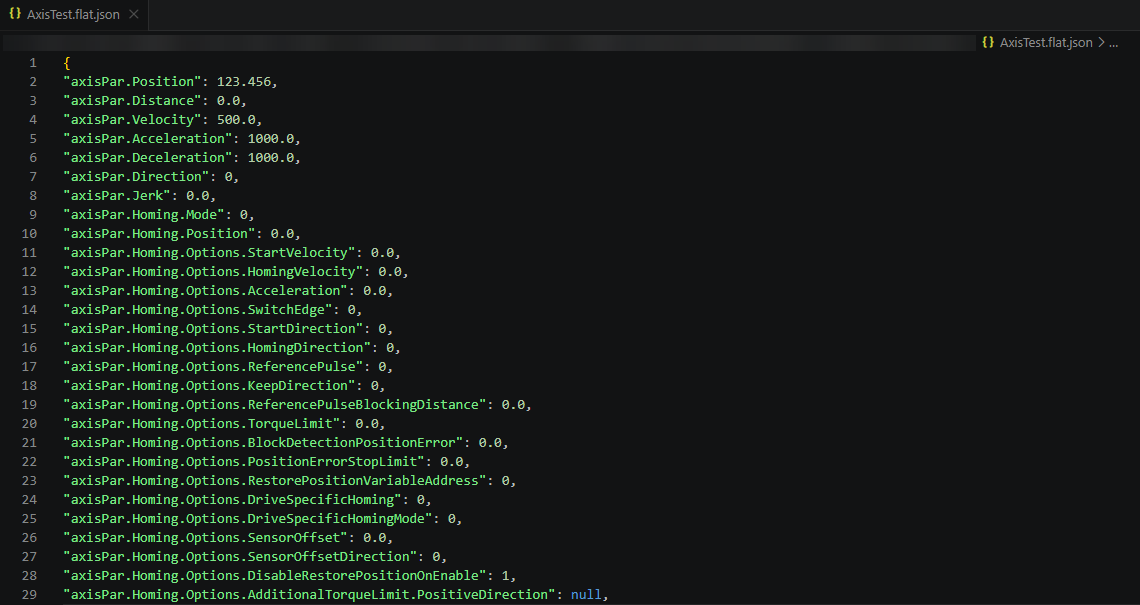

"""Flatten PVM-derived JSON files for easy searching in an editor.

Turns the nested `variables` tree into a flat object keyed by dotted path,
one variable per line:

    {
      "axisPar.Velocity": 500.0,
      "gAxis.sts.homed": true,
      "gAxis.sts.actPosition": 123.456,
      "gMainAxis.controlif": null,
      ...
    }

Usage:
    python flatten_json.py                 # flatten every *.json in cwd
    python flatten_json.py file.json ...   # flatten specific files

Output is written next to each input as <name>.flat.json. Already-flattened
files (*.flat.json) are skipped.
"""

import argparse
import json
from pathlib import Path


def flatten(node, prefix=""):
    if isinstance(node, dict):
        for k, v in node.items():
            yield from flatten(v, f"{prefix}.{k}" if prefix else k)
    elif isinstance(node, list):
        for i, v in enumerate(node):
            yield from flatten(v, f"{prefix}[{i}]")
    else:
        yield prefix, node


def main():
    ap = argparse.ArgumentParser(
        description="Flatten PVM-derived JSON to one dotted path per line.")
    ap.add_argument("files", nargs="*",
                    help="JSON files to flatten (default: all *.json in cwd)")
    args = ap.parse_args()

    files = [Path(f) for f in args.files]
    if not files:
        files = [f for f in sorted(Path(".").glob("*.json"))
                 if not f.name.endswith(".flat.json")]
        if not files:
            ap.error("no JSON files given and none found in current directory")

    for f in files:
        if f.name.endswith(".flat.json"):
            print(f"{f.name}: already flat, skipping")
            continue
        data = json.loads(f.read_text(encoding="utf-8"))
        tree = data.get("variables", data)  # accept raw or {meta, variables}
        flat = dict(flatten(tree))
        out = f.with_name(f.stem + ".flat.json")
        body = json.dumps(flat, indent=0)  # one "path": value per line
        out.write_text(body + "\n", encoding="utf-8")
        print(f"{f.name} -> {out.name} ({len(flat)} variables)")


if __name__ == "__main__":
    main()

#!/usr/bin/env python3
"""Look up variables in PVM-derived JSON files by (partial) dotted path.

Flattens each JSON file to dotted paths (e.g. gAxis.sts.homed) and
prints every path that matches the query. Matching is case-insensitive:
  - exact path        gAxis.sts.homed
  - substring         actPosition, position
  - wildcards         gAxis.sts.stPos*, axisPar.*

Usage:
    python find_var.py gAxis.sts.homed AxisTest.json
    python find_var.py "gAxis.sts.stPos*" AxisTest.json
    python find_var.py actPosition --all               # search every *.json in cwd
"""

import argparse
import fnmatch
import json
from pathlib import Path


def flatten(node, prefix=""):
    if isinstance(node, dict):
        for k, v in node.items():
            yield from flatten(v, f"{prefix}.{k}" if prefix else k)
    elif isinstance(node, list):
        for i, v in enumerate(node):
            yield from flatten(v, f"{prefix}[{i}]")
    else:
        yield prefix, node


def find_hits(pairs, query):
    """Return matching (path, value) pairs. Exact full-path matches win;
    otherwise fall back to wildcard/substring matching."""
    q = query.lower()
    exact = [(p, v) for p, v in pairs if p.lower() == q]
    if exact:
        return exact
    if "*" in q or "?" in q:
        return [(p, v) for p, v in pairs
                if fnmatch.fnmatchcase(p.lower(), q)
                or fnmatch.fnmatchcase(p.lower(), f"*{q}*")]
    return [(p, v) for p, v in pairs if q in p.lower()]


def main():
    ap = argparse.ArgumentParser(
        description="Find variables in PVM-derived JSON files by dotted path.")
    ap.add_argument("query", help="full or partial dotted path; * and ? wildcards allowed")
    ap.add_argument("file", nargs="?", help="JSON file to search")
    ap.add_argument("--all", action="store_true",
                    help="search every *.json in the current directory")
    args = ap.parse_args()

    if args.all:
        files = [f for f in sorted(Path(".").glob("*.json"))
                 if not f.name.endswith(".flat.json")]
        if not files:
            ap.error("no *.json files found in current directory")
    elif args.file:
        files = [Path(args.file)]
    else:
        candidates = [f for f in sorted(Path(".").glob("*.json"))
                      if not f.name.endswith(".flat.json")]
        if len(candidates) == 1:
            files = candidates
        else:
            ap.error("specify a JSON file (or use --all to search every file):\n  "
                     + "\n  ".join(f.name for f in candidates))

    total = 0
    for f in files:
        data = json.loads(f.read_text(encoding="utf-8"))
        tree = data.get("variables", data)  # accept raw or {meta, variables}
        hits = find_hits(list(flatten(tree)), args.query)
        if hits:
            print(f"\n{f.name}:")
            for path, value in hits:
                print(f"  {path} = {json.dumps(value)}")
            total += len(hits)
    if total == 0:
        print(f"no match for {args.query!r}")


if __name__ == "__main__":
    main()
